Motor Grader Breakdown Prevention: 10 Checks That Stop Costly Failures

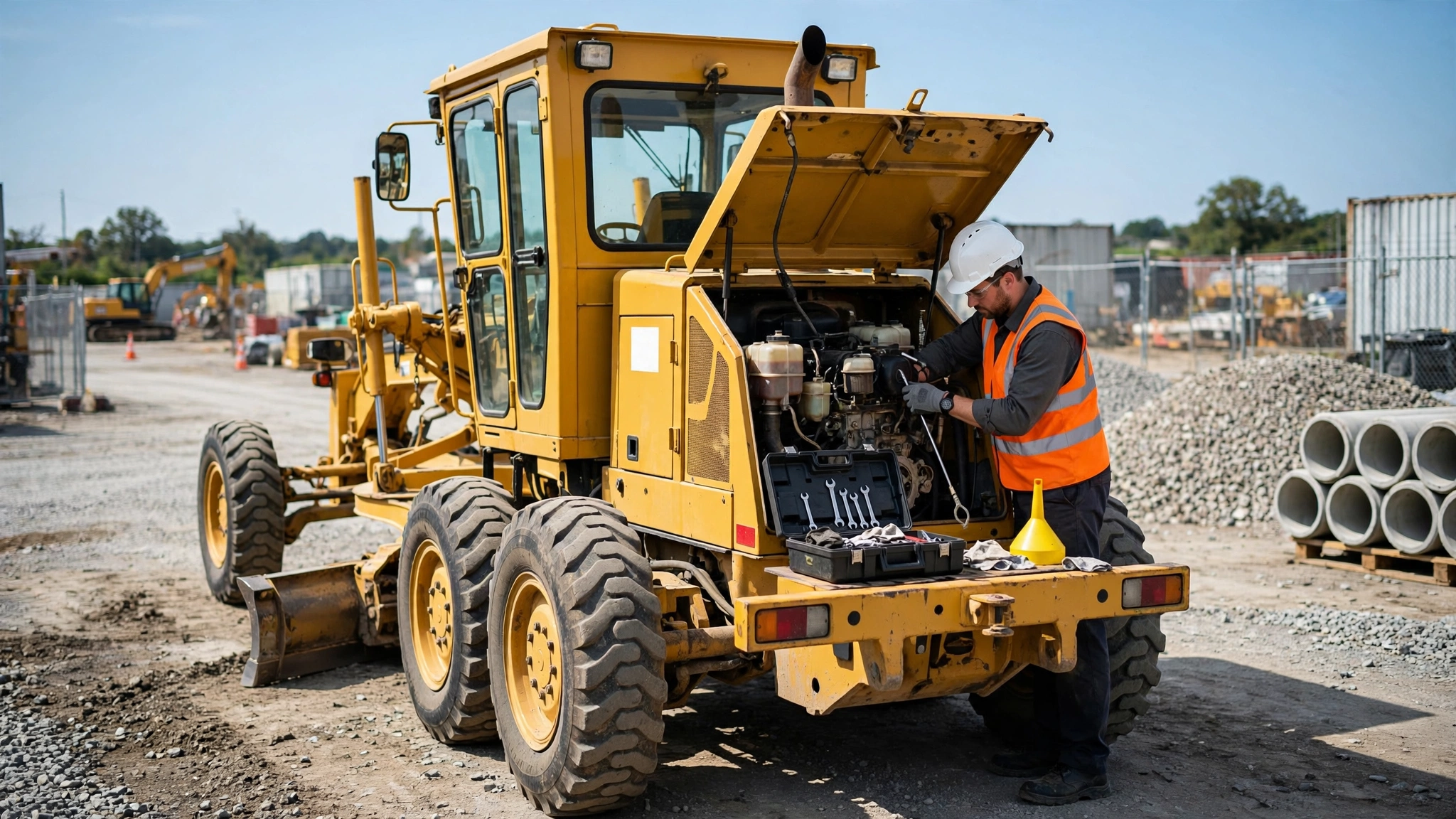

Effective motor grader breakdown prevention starts with the daily walkaround. Most operators rush this step and miss early warning signs that become expensive repairs. Take 10 minutes to look at, touch, and listen to every single component.

The first check is fluid levels. Low fluid kills components fast. Low engine oil seizes the engine, while low hydraulic oil burns the pump. This motor grader breakdown prevention fluid check takes just 2 minutes. Check the engine oil dipstick, the hydraulic sight gauge, the transmission dipstick, and the coolant overflow bottle.

A contractor lost an engine due to low oil because the operator skipped this check. A simple 2-minute inspection would have stopped this motor grader breakdown prevention failure, saving an avoidable $25,000 repair bill.

The second check in this motor grader breakdown prevention guide is tire condition. Tires cost up to $5,000 each. Walk around each tire and look for cuts, embedded objects, or uneven wear patterns indicating misalignment. Match the pressure to the sidewall specification.

One operator ignored a 2-inch cut that grew into a blowout, destroying the fender. Proper motor grader breakdown prevention would have caught the cut early, saving $6,000 in total damages by replacing or patching it in time.

The third check is the cutting edge. A dull cutting edge forces the machine to work harder, overheating the hydraulics and burning extra fuel. This motor grader breakdown prevention step takes exactly 1 minute. Measure the remaining thickness and replace it when it drops below 1 inch.

A fleet manager saved 3,000 gallons of fuel ($12,000) over 2,000 hours simply by replacing a worn edge. This proves that minor checks yield massive long-term savings.

The fourth check covers the circle wear strips. Worn strips allow the circle to drop, increasing friction that ruins the circle drive gear. This motor grader breakdown prevention check requires pushing the blade side to side. Movement over 1 inch indicates worn strips.

Catching this early saves a $4,500 gear replacement for just a $300 wear strip fix.

The fifth check in your motor grader breakdown prevention protocol is the hydraulic hoses. A hose failure sprays hot oil everywhere. Inspect every hose for cracks, bulges, and chafing.

A burst hose once ignited on an exhaust manifold causing an $18,000 fire. Routine visual inspections find chafing early, costing only $150 to reroute and replace the hose.

The sixth check is the air filter. Dust destroys engines. A clogged filter restricts airflow, causing power loss and increased fuel consumption. This motor grader breakdown prevention check takes 1 minute. Check the dust indicator or hold a light behind the element.

One completely clogged filter cost a contractor $800 in wasted fuel alone over just 500 hours.

The seventh check focuses on drive belts. A broken belt stops the cooling and charging systems. This motor grader breakdown prevention step involves pushing the belt to check for 0.5 to 1 inch of deflection. Look for cracks or glazing.

A $50 belt replacement easily prevents an $8,000 cracked cylinder head caused by overheating.

The eighth check in this motor grader breakdown prevention guide is the grease points. Without grease, pivot pins wear out, causing play that ruins fine grade control.

Pump grease into the circle, drawbar, and articulation joint. Skipping this simple step cost one contractor $6,000 for a massive articulation joint replacement.

The ninth check examines the battery and electrical connections. Loose connections cause starting problems, while voltage drops damage critical solenoids.

This motor grader breakdown prevention electrical check takes 2 minutes. Clean terminals, tighten clamps, and test voltage. Catching a loose cable early prevents hours of paid downtime waiting for a service truck.

The tenth check targets the engine coolant, which prevents overheating and freezing. This motor grader breakdown prevention coolant check takes 1 minute. Check the level and color in the overflow bottle.

A skipped check once led to blown head gaskets costing $5,000. Always ensure the coolant remains clean and filled to the appropriate level.

Now let us apply this motor grader breakdown prevention guide to your daily routine. Start with the fluid level check every morning. Add the tire and cutting edge checks to your weekly routine. Add circle, hose, and belt checks to your monthly schedule.

To avoid complex engine failures entirely, follow our comprehensive motor grader fuel system troubleshooting guide alongside these daily checks.

This motor grader breakdown prevention checklist will save you massive amounts of money. The entire daily process takes just 10 minutes. A fleet of 12 graders implemented this motor grader breakdown prevention protocol, dropping breakdowns by 60 percent and saving $72,000 in the first year alone.

When finishing your grading projects, ensure maximum surface durability with the heavy-duty Typhon Fury 1.0 Mini Road Roller.

Start your motor grader breakdown prevention program today. Look at the fluids, tires, cutting edge, circle, hoses, and filters. Implement robust motor grader breakdown prevention to ensure maximum uptime and stop costly failures before they stop you.
